FMCW Description with diagram of working of radar?

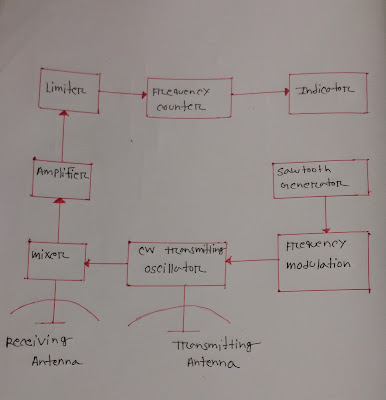

Fmcw is Frequency modulated continuous wave..In this process the modulated signal is filled.The modulated signal is transmitted by the transmitter.The receiving antenna receives the signal and transmits it to the mixer.The output is then amplified and sent to the frequency counter and display unit through a limiter
